E-Glass 400g Fiberglass Woven Roving

Material: E glass
Weight: 200g, 400g, 600g, 800g, etc
Color: White

Categories :
Contact Now
  • Description

E-Glass 400g 14.11oz 100cm Width White Fiberglass Woven Roving

Product Description

Fiberglass Woven Roving is an engineering material, which has the excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity, this new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc

Specifications

Color White
Material Fiberglass
Weave Type Plain Woven
Yarn Type E Glass
Function Exterior Wall Heat Insulation, Roof Waterproof.
Width 0.9m, 1.0m, 1.3m, etc
Length 100m, 150m, 200m, etc
Weight 200g, 400g, 600g, 800g, etc

Conventional Packing: Each roll in plastic bag, then 2 rolls per woven bag. 25 Tons can be loaded into a 20’GP.

Fiberglass Woven Roving Has Many Advantages

1. High intensity and quick wet out
2. Perfect designable character
3. Anti-corrosion and electric insulation

Specifications

Style Yarn(Tex) Density(Ends/10cm) Mass(g/m2) Width(cm) Tensile Strength(N/50mm)
Warp Weft Warp Weft
EWR200 200 50 50 200±16 90/100 ≥1300 ≥1100
EWR400 600 35 32 400±32 100/127 ≥2500 ≥2200
EWR570 1150 26 24 570±45 100/127 ≥3600 ≥3300
EWR600 1200 26 24 600±48 100/127 ≥4000 ≥3850
EWR800 2400 18 16 800±64 100/127 ≥4600 ≥4400
CWR135 150 50 40 135±10 90/100 ≥750 ≥600
CWR180 200 50 40 180±15 90/100 ≥1050 ≥900
CWR200 200 50 50 200±16 90/100 ≥1150 ≥1000
CWR310 500 35 28 310±24 90/100 ≥1600 ≥1500
CWR400 500 40 40 400±32 90/100 ≥2000 ≥1900
CWR600 1200 26 24 600±48 90/100 ≥2750 ≥2600
CWR800 2400 18 16 800±64 100/127 ≥3000 ≥2900
Nonstandard product is available upon customer’s request. This data is for reference only.

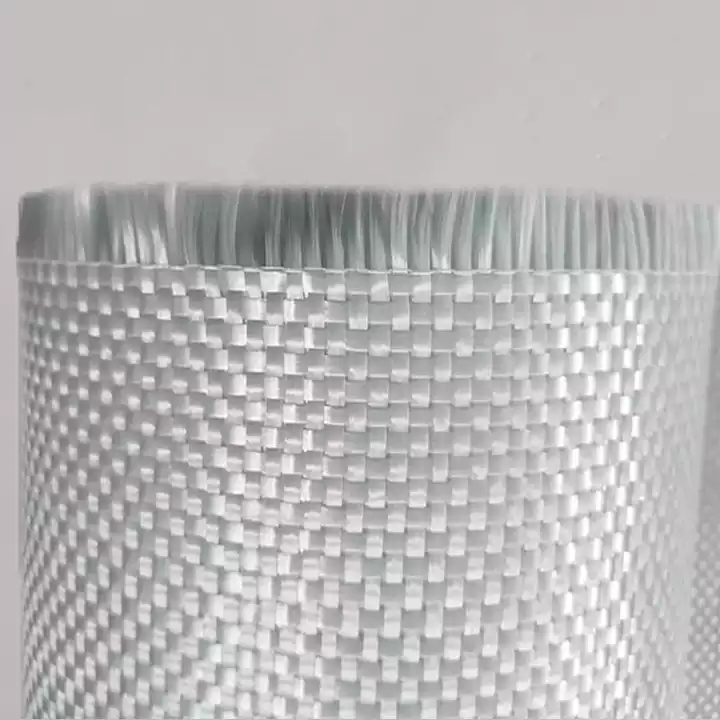

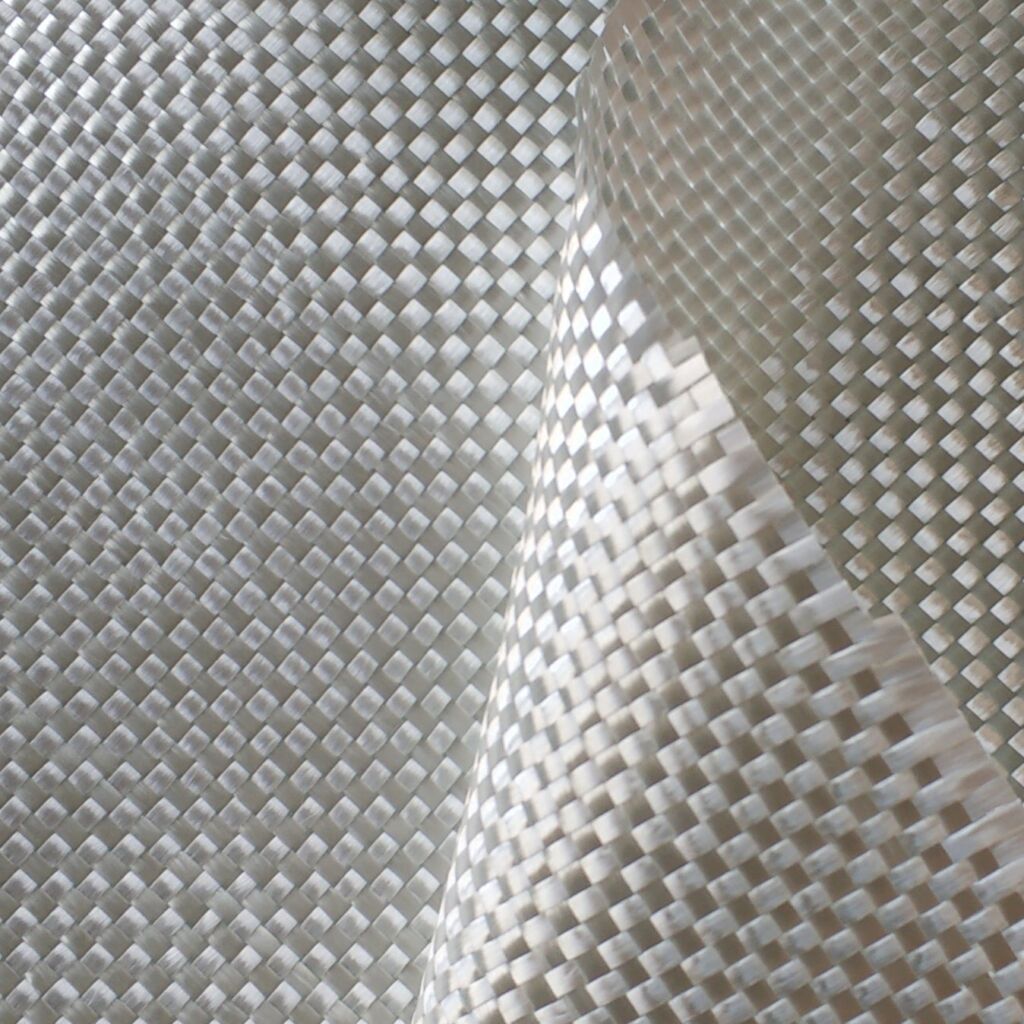

Product Display
